Modifikasi ic tone R2S15900 HBT-01-01G

20.17 By Solder Pecebeq 2 komentar

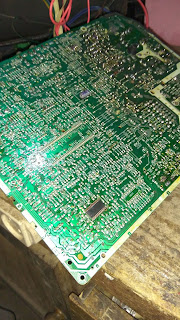

MODIFIKASI TANPA IC R2S15900
1. Lepas ic tone Dan pasang jumper
2. Jumper bekas kaki ic tone pin 2 &11, pin 27 & 19
(audio out UOC to in PA)
3. Jumper pin 3 & 26 (av1 in LR),pin 4 & 25 (av2 in LR)
4. Jumper lgi pin 3 ic tone ke pin22 ic HBT-00-02G
(av1 in to ext aud1 in UOC),
    pin 4 ic tone kepin 32 ic HBT (av2 in to ext aud2 in UOC)
5. Masuk sermod, kode fac 1014.
    Rubah bit “OPTION 0” dari
                   “01000111” menjadi “10000000”
                      TV, AV1, AV2, kmudian agar volume dapat di countrol masuk ke 1206
rubah menjadi VL1
                          13H     19


salam nyoss?
by: Solder Pecebeq
